測量原理：電化學/激光/磁氧(根據客戶可選擇)

測量范圍：0.00%～25.00%(量程可任意選擇)

精   度：≤±1%F.S

分辨率：0 .01%

重復性：≤±1%F.S

穩定性：零點漂移≤±1%F.S/7d   量程漂移≤±1%F.S/7d

整機功耗：≤15W

存儲間隔：以秒為單位(任意設置)

儀器壽命：整機6年(正確操作使用條件下)

工作電壓：220-240VAC,50\60Hz

響應時間：T90≤10 S (電化學)T90≤3  S(磁氧)T90≤30  S(激光)

數字信號：標準的 RS485/RS232通訊口，可與計算機實現雙向通訊

模擬輸出：4~20mA 標準輸出信號，負載電阻小于500歐(0~10V可選)

安裝方式：嵌入式安裝

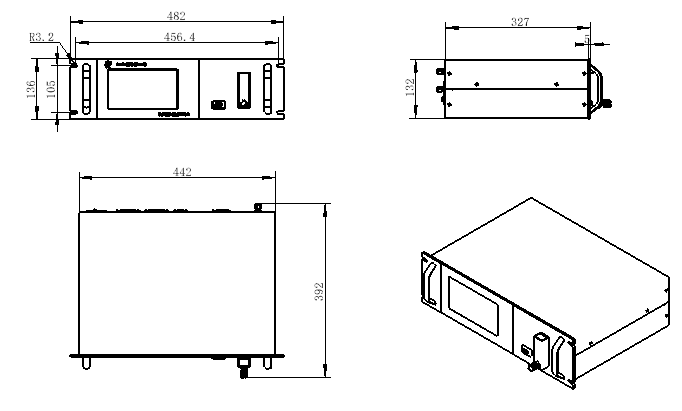

外形尺寸：482mm (寬)×136mm (高)×370mm ( 深 )

開孔尺寸：456mm (寬)×105mm ( 高 )

進出氣口：φ6卡套接口(可定制)

整機重量：約8kg

環境溫度： -25℃~+55℃

環境濕度：≤90%RH

入口壓力：0.05 MPa≤入口壓力≤0.25Mpa

樣氣流量：400±50ml/min(磁氧200±50/min)

樣氣要求：無塵、無油、無水

●全中文可觸摸菜單的形式進行各項儀表參數的配置、標定、測試，歷史記錄、曲線可根據時間設定等快捷的操作；

●可同時顯示測量值、歷史曲線、量程、狀態、各項參數設置界面；

●選用進口傳感器，精度高、響應快等特點；

●無人值守時，定時自動存儲功能，可隨時查看存儲數據；

●內置溫度補償，壓力補償，減小樣氣溫度和環境的變化對測量精度的影響；

●64M內存、128M FLASH USB接口方便客戶數據存儲；

●以太網口實現到廣域網的聯結(可選);

●采用新型的氣路穩流系統；具有技術*、精度高、響應快、性能穩定、功能齊全、操作方便、氣體分析過程連 續等優點；

●內置抽氣泵(可選)。

●儀器具有自動標定功能(可選)。

●可進行開機自檢，故障顯示，異常診斷

空分制氮、儲存、化工流程、磁性材料等高溫?zé)�結爐保護性氣體、電子行業保護性氣體以及玻璃、建材行業氧含量的在線分析。
