測量原理：NDIR 原理(非分散式紅外)

精       度：≤±2%F.S

分  辨  率：0 .01%

重  復  性：≤±1%F.S

穩  定  性：零點漂移≤±1%F.S/7d    量程漂移≤±1%F.S/7d

響應時間：T90≤10 S

存儲間隔：以秒為單位(任意設置)

存儲點數：百萬條+

預熱時間：≤1min

樣氣壓力：0.05MPa≤入口壓力≤0.25MPa

模擬輸出：隔離4~20mA 標準信號，負載電阻小于500 歐(0～10V 可選)

數字輸出：標準的 RS485或RS232, 可與計算機實現雙向通訊

觸點輸出：雙繼電器輸出220VAC,10A  或 2 4VDC,2A

工作環境：溫度： -15℃~+45℃

                 濕度：≤90%RH

工作電源：220V~240VAC,50\60Hz

整機功耗：小于15W

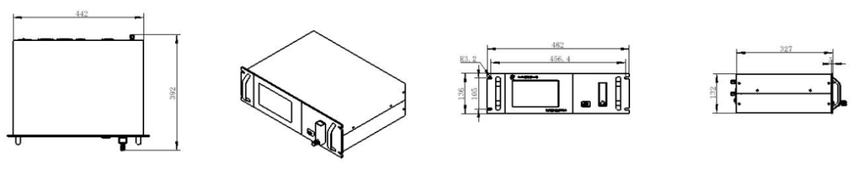

外形尺寸：482mm (寬)×176mm (高)×427mm ( 深 )

安裝尺寸：460mm (寬)×127mm ( 高 )

使用壽命：>6年(規范操作正常使用條件下)

氣路接口：φ6卡套接口(可根據客戶訂制)

重       量：約4.5kg

環境溫度： -25℃~+55℃

環境濕度：≤90%RH

入口壓力：0.05 MPa≤入口壓力≤0.25Mpa

樣氣流量：400±50ml/min

樣氣要求：無塵、無水、無油

●全中文可觸摸菜單的形式進行各項儀表參數的配置、標定、測試，歷史記錄、曲線可根據時間設定等快捷的操作；

●可同時顯示測量值、歷史曲線、量程、狀態、各項參數設置界面；

●選用進口傳感器，精度高、響應快等特點；

●無人值守時，定時自動存儲功能，可隨時查看存儲數據；

●內置溫度補償，壓力補償，減小樣氣溫度和環境的變化對測量精度的影響；

●64M內存、128M FLASH USB接口方便客戶數據存儲；

●以太網口實現到廣域網的聯結(可選);

●采用新型的氣路穩流系統；具有技術*、精度高、響應快、性能穩定、功能齊全、操作方便、氣體分析過程連 續等優點；

●內置抽氣泵(可選)。

●儀器具有自動標定功能(可選)。

●可進行開機自檢，故障顯示，異常診斷。

廣泛應用于空氣行業，工業控制，工業煙氣排放監控，石油化工過程中的氣體檢測，空氣質量檢測，垃圾填埋 場、污水處理廠、各類氣體含量檢測，工業流體焊接工藝中氣體的檢測。
