測量原理：NDIR 原理(非分散式紅外)

精       度：≤±2%F.S

分  辨  率：0 .01%

重  復  性：≤±1%F.S

穩  定  性：零點漂移≤±1%F.S/7d      量程漂移≤±1%F.S/7d

響應時間：T90≤15 S

存儲間隔：以秒為單位(任意設置)

存儲點數：65536條

儀器壽命：整機6年(正確操作使用條件下)

工作電壓：220-240VAC,50\60Hz

整機功耗：10W

觸點輸出：雙繼電器輸出

觸點容量：220V AC,2A/24V DC,1A

安裝方式：嵌入式安裝

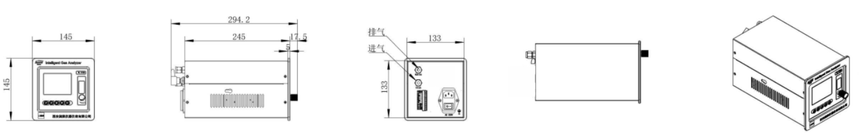

外形尺寸：145mm (寬)×145mm (高)×282mm ( 深 )

開孔尺寸：135mm (寬)×135mm (高)

進出氣口：φ6(外徑)卡套接頭(可訂制尺寸)

整機重量：約2.6Kg

環境溫度： -25℃~+55℃

數字信號：標準的 RS485/RS232 通訊口，可與計算機實現雙向通訊

 環境濕度： ≤90%RH

入口壓力：0.05 MPa≤入口壓力≤0.25Mpa

樣氣流量：400±50ml/min

樣氣要求：無塵、無水、無油

●儀器采用全中文菜單操作，通俗易懂、簡單可靠，具有控制觸點輸出、越限自身報警(蜂鳴器及屏幕顯示), 并可隨意設置報警方式；

●選用進口傳感器，精度高、響應快等特點；

●無人值守時，定時自動存儲功能，可隨時查看存儲數據；

●內置溫度補償，減小樣氣溫度和環境的變化對測量精度的影響；

●采用新型的氣路穩流系統；具有技術*、精度高、響應快、性能穩定、功能齊全、操作方便、氣體分析過程 連續等優點；

●內置抽氣泵(可選)。

廣泛應用于空氣行業，工業控制，工業煙氣排放監控，石油化工過程中的氣體檢測，空氣質量檢測，垃圾填埋 場、污水處理廠、各類氣體含量檢測，工業流體焊接工藝中紅外的檢測。
