測量原理：NDIR 原理(非分散式紅外)

精      度：≤±2%F.S

分  辨  率：0 .01%

重  復  性：≤±1%F.S

穩  定  性：±1%F.S/7d

響應時間：T90≤15 S

存儲間隔：以秒為單位(任意設置)

存儲點數：65536條

防爆等級：ExdIICT6 /ExtDA21 IP65 T80℃

儀器壽命：6年(正確操作使用條件下)

工作電壓：220VAC,2A/24VDC,1A

整機功耗：≤25W

觸點輸出：雙繼電器輸出

觸點容量：220VAC,2A/24VDC,1A

數字信號：標準的RS485/RS232通訊口，可與計算機實現雙向通訊                                                                                                                                                       安裝方式：壁掛式安裝

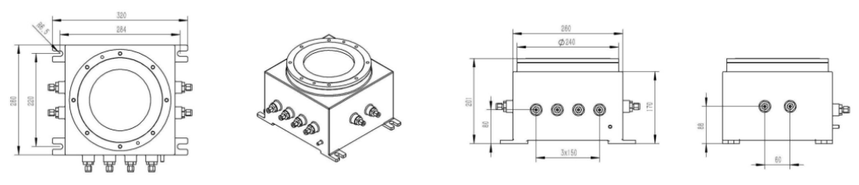

外形尺寸：260mm (長)×260mm (寬)×206mm (高)(可定制)

進出氣口：φ6卡套接口(可定制)

整機重量：約15Kg

模擬輸出：隔離4～20mA 標準輸出信號，負載電阻小于500歐(0~10V 可選)

環境溫度： -25℃~+55℃

環境濕度：≤90%RH

入口壓力：0.05 MPa≤入口壓力≤0.25Mpa

樣氣流量：400±50ml/min

樣氣要求：無塵、無水、無油

●儀器采用全中文菜單操作，通俗易懂、簡單可靠，具有控制觸點輸出、越限自身報警(蜂鳴器及屏幕顯示), 并可隨意設置報警方式；

●選用進口傳感器，精度高、響應快等特點；

●無人值守時，定時自動存儲功能，可隨時查看存儲數據；

●內置溫度補償，減小樣氣溫度和環境的變化對測量精度的影響；

●采用新型的氣路穩流系統；具有技術*、精度高、響應快、性能穩定、功能齊全、操作方便、氣體分析過程 連續等優點；

●內置抽氣泵(可選)。

廣泛應用于空氣行業，工業控制，工業煙氣排放監控，石油化工過程中的氣體檢測，空氣質量檢測，垃圾填埋 場、污水處理廠、沼氣工程中沼氣含量檢測，工業流體焊接工藝中氣體的檢測。
