測量原理：微流熱導式

測量范圍：0%~10%;0%~50%;0%~*(量程可選擇)

精       度：≤±1.5%F.S

分  辨  率：0.01/0.1%(根據量程而定)

重  復  性：≤±1%FS

穩  定  性：零點漂移≤±1%F.S/7d

量程漂移≤±1%F.S/7d

線  性  度：≤±1.2%F.S

響應時間：T90≤10 秒

預熱時間：≤40min

工作電壓：DC12V+±0.5V

整機功耗：10W

數字信號：RS-485;TTL 通訊

模擬輸出：4-20mA

安裝方式：固定式

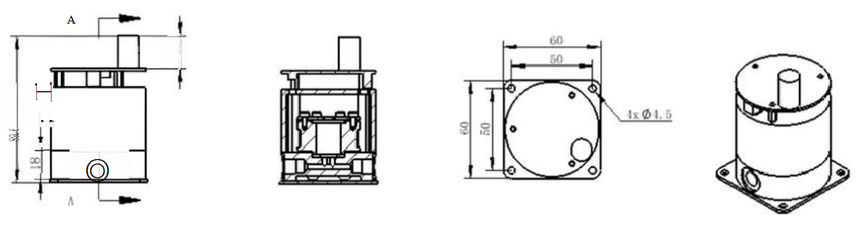

外形尺寸：89cm(高)×97(寬)

進出氣口：φ6軟管

整機重量：266g

環境溫度：-5℃~+45℃

環境濕度：≤90%RH

樣氣流量：400+±100ml/min

樣氣要求：無塵、無水、無油。

●抗腐蝕性，允許樣氣中含有適當濃度的腐蝕性氣體(如硫化物);

●低漂移熱導電橋的創新設計，保障了高穩定性；

●模塊體積小，便于安裝。

廣泛應用于化肥合成氨流程中氫濃度的分析、熱電廠及核電站氫濃度的監測、實驗室燃燒試驗的氣體含量測定、 鋼廠高爐煤氣分析。
