測量原理：氧化鋯雙離子流

測量范圍：0.00PPm ～25.00% (自動換擋)

精       度：±1% F.S

分  辨  率：0.01%                                                                                                                                                                                                                               重  復  性：≤1%F.S

穩  定  性：零點漂移≤1% F.S/7d

                 量程漂移≤1% F.S/7d

預熱時間：≤2min

儀器壽命：整機6年，傳感器壽命1~2年(正確操作使用條件下)

存儲間隔： 以秒為單位(任意設置)

存儲點數：65536條

響應時間：T90≤60s

工作電壓：220-240VAC,50\60Hz

 整機功耗：≤25W

 觸點輸出：雙繼電器輸出

觸點容量：220VAC,2A/24VDC,1A

數字信號：標準的 RS485/RS232 通訊口，可與計算機實現雙向通訊

模擬輸出：4~20mA 標準輸出信號，負載電阻小于500歐(0~10V可選)

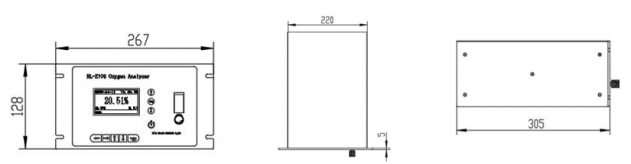

外型尺寸：267mm(寬)x128(高)x305mm(深)

開孔尺寸：267mm(寬)x128mm(高)

進出氣口：φ6快擰接頭(可根據客戶訂制)

重量：3.0kg

環境溫度：-25℃~+55℃

環境濕度：≤90%RH

入口壓力：0.05 MPa<入口壓力≤0.25MPa                                                                                                                                                                                          樣氣流量：2L/min

樣氣要求：無塵、無水、無油

●變頻離子流(雙離子流)具有響應速度快，測量精度高，使用壽命長，標校周期長等特點；

●320*240 圖形點陣彩色LCD 屏，清晰，細膩；

● 可同時顯示氧量、日期、時間等參數；

●通過空氣中的一點標校，就可實現儀器從 PPm~%  的準確測量，使其校準簡單方便；

●內置原裝進口采樣泵，壽命長、工作可靠(選配);

●方便快捷的通訊協議選擇，可替換市面上大多數氧分儀廠家的通訊協議。

回流焊行業、空氣分離、氣體生產制造、化工流程、電子行業保護性氣體以及玻璃、建材行業的氧含量的在線 分析。
